      MirrorEye MKII ECU Software Update

      All released MKII systems with firmware version older than 2.2.12 (see images below for identification)

      Requirements:
      MKII SDM Tool - download from the link below "Update Interface Tool Application"
      RadMoon or Stoneridge Connectivity device and cables -
      1. Computer with a RJ45 (ethernet) port or an adapter to an available port,
      2.  USB port for power
      3. if using a RadMoon - requires Fakra coax cable device to the ECU
      Check the current firmware version through the MSA portal OR the ME Driver Menu

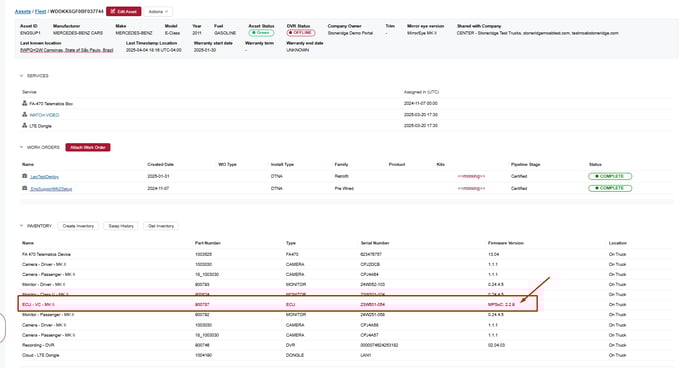

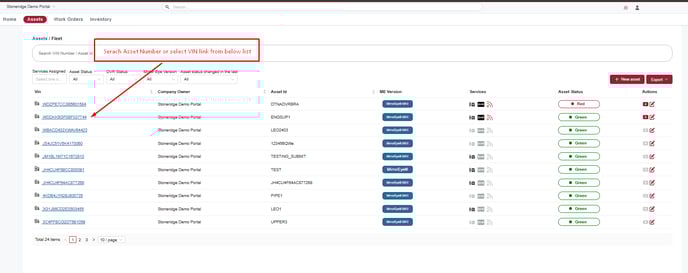

      In MSA search the asset and review listed inventory:
      Verify MPSoc VC Version of current system ECU

      OR

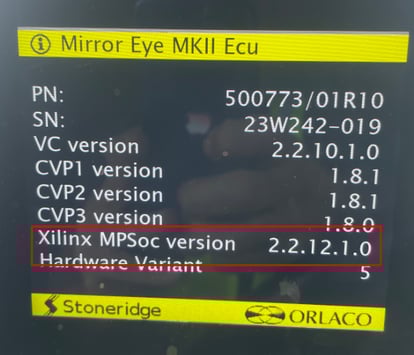

      Access the Driver Menu from and navigate to the MirrorEye MKII ECU screen

      Please review the SOP before continuing.  This walks through the required connection setup and interface screen.  This will install the latest system release version 10

      Link to SOP and how to complete the update:   MirrorEye MKII ECU Update SOP

      Link to Interface Application Software Tool:  Update Interface Application Tool

      1. Download the Interface Application from link above and save to your local computer.

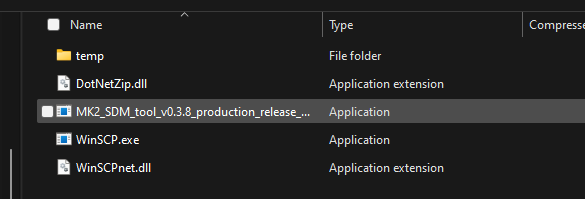

      2. Extract zip file.  DO NOT RUN FROM THE DOWNLOADED ZIP FILE.
      3. Application will be ran from this location.  Engage your company IT dept if needed.
      4. Once tool is installed, run MK2_SDM_tool_v0.3.8_Release 2.2.12 from this location.
      5. NOTE:  Good vehicle battery voltage is required for update to complete as well as computer fully charged or plugged in.  This update can take up to 60 mins to complete and CANNOT lose connection once started.

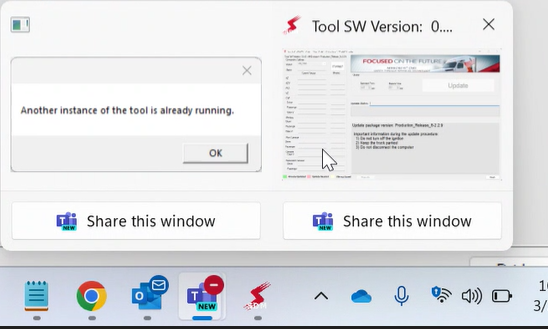

      Be sure to only be running on instance of the application.  If attempted to open multiple sessions this error will be shown.

      • Don’t disconnect the computer from the ECU while the update is running.
      • Keep the truck parked during the update (Update stop working if the truck is moving).
      • The progress bar and the elapsed time can be check during the update.
      • Wait the message “Update completed”.
      •  Click OK.
      •  Click Finish.

      After pressing Finish, the ECU and the monitors will be completely updated.



      Verify in MSA or the MKII Driver menu the MPSoc VC Version is displaying 2.2.12



      Rel 4/2024  Rev. 04/22/2025
