MEI has Flood ONLY, MKII has Flood and Focused Verify infrared lights are coming when requested.
When MirrorEye night mode is enabled, this feature turns on IR lights in both Passenger and Driver side wings. (shown below)
Error Notification on Driver Monitor, Icon on the monitor will illuminate RED when an error is present.
Monitor Icon Definitions and Identification MirrorEye - MKII has 4 status icons, MEI has 6 status icons
How to test if feature is functional

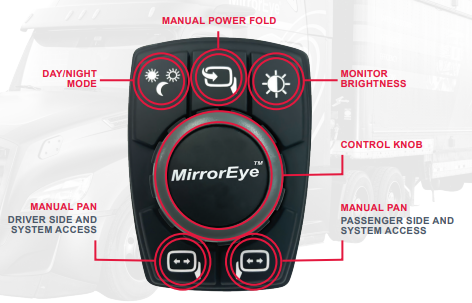

1. Enable night mode by selecting night mode button on the MirrorEye dash controller
2. Perform physical inspection of the LED illumination in the camera wings

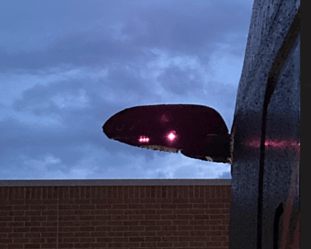

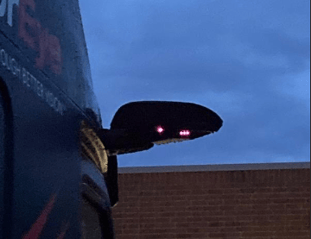

Flood IR is the "night vision" for normal night driving. This is the 3 led light bar show below
Focused IR is enabled when the gear selection is REVERSE and NIGHT MODE IS ENABLED. This is the "Cone light" for visibility to the end of the trailer.
This verification will require 2 people, one to safely switch gears to reverse, 2nd tech to observe LED in the wing.
If no LED illumination is noted: Replace the Camera Wing.

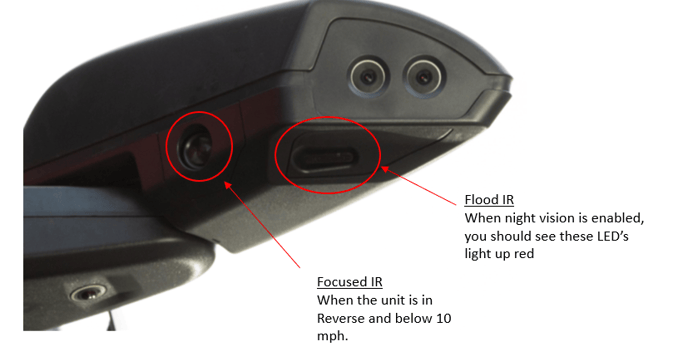

MKII Example

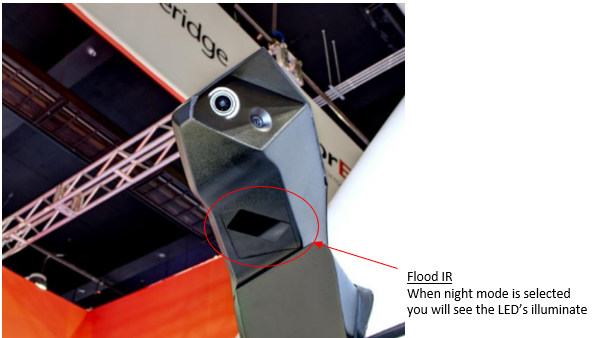

MEI Example
Ver 4/2/2024 Rev 4/22/2024
